Equipment frames, structural supports, display stands... We offer customized metal frames of all types, including carbon steel, stainless steel, and aluminum.



We have in-house processes for laser cutting, bending, welding, and surface treatment, eliminating the need for outsourcing. The dimensions are precise, and the structure is stable. Flexible batch production, according to the drawings.



Custom metal frames: welded and bolted structures

A frame carries the load and sets the geometry of everything bolted onto it, so it is the part where straightness, squareness and a sound weld matter most. We build frames as complete welded assemblies, not as loose tubes and plates.

Typical frame work

Processes involved

Blanks come from our laser cutting or stamping lines, are formed on CNC press brakes, then MIG, TIG or spot welded depending on material and joint. Weld areas are ground and finished afterwards so the frame is clean in appearance as well as structurally sound.

Tolerances that matter on a frame

Diagonals and mounting-hole positions govern whether a frame assembles without force. On formed and welded features we typically hold ±0.5 mm on critical dimensions, and machined features — such as a bored mounting face — are held to ±0.05 mm. Which limits we can actually hold on your geometry is confirmed at drawing review.

Keeping a welded frame square

Fixturing and weld sequence decide this more than the cutting accuracy does. First-piece verification approves the set-up before the run begins, and in-process checks catch distortion early rather than at final inspection.

Materials and finish

Stainless 304/316, carbon and galvanised steel, aluminium and brass. Powder coating, spraying or electroplating as required — two self-operated finishing lines, so the sample finish matches the batch.

Read more

Custom metal welding for durable metal assemblies, and custom metal parts cases from RFQ to delivery.



Below are just a

Custom Heavy-Duty Metal Frame Project Specifications✓ In-House Verified
Target Industry
Electrical Control Enclosures, Power Distribution & Industrial Frameworks
Selected Materials
Structural Carbon Steel (Q235/Q345), Stainless 304/316, Extruded Aluminum
Fabrication Route
Laser Tube/Plate Cutting + Robotic MIG/TIG Welding + CNC Milling Flatness
Structural Tolerance
Overall Diagonal Tolerance ±1.0 mm, Mounting Plane Flatness ≤ 0.8 mm
Load Capacity
Heavy-duty structural load verified up to 2,000 kg
Quality Documentation
Weld NDT / PT inspection, Coating Thickness Test (≥ 80 μm), FAI Report
portion of the over 70,000 types of parts that we have produced.

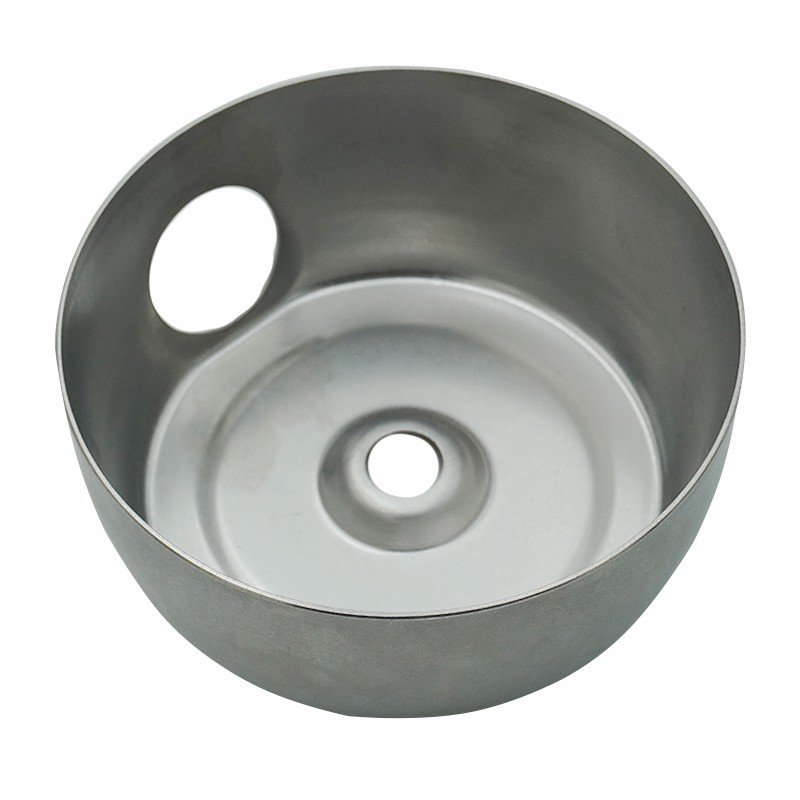

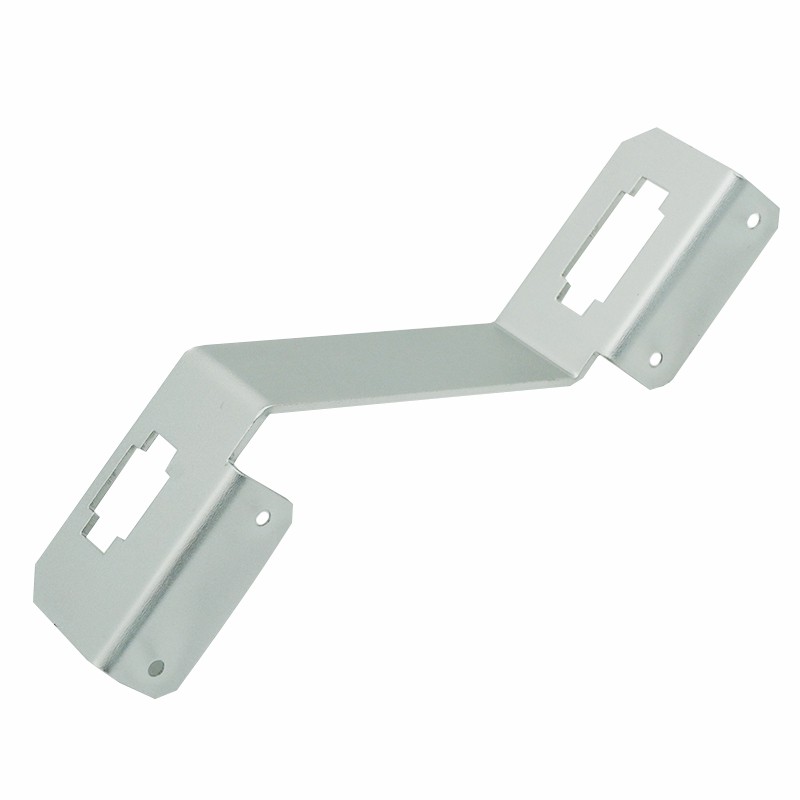

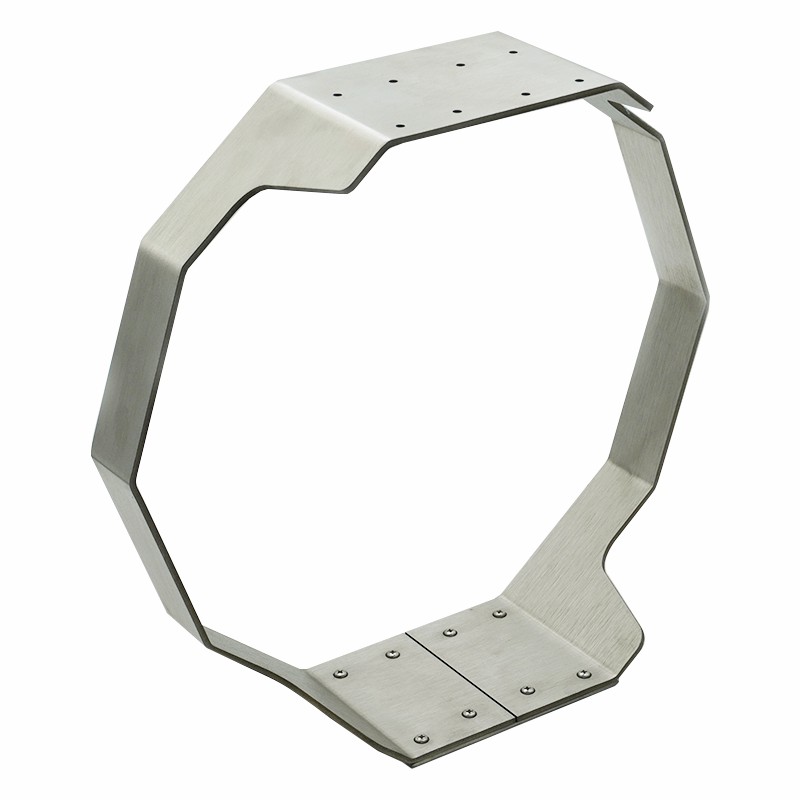

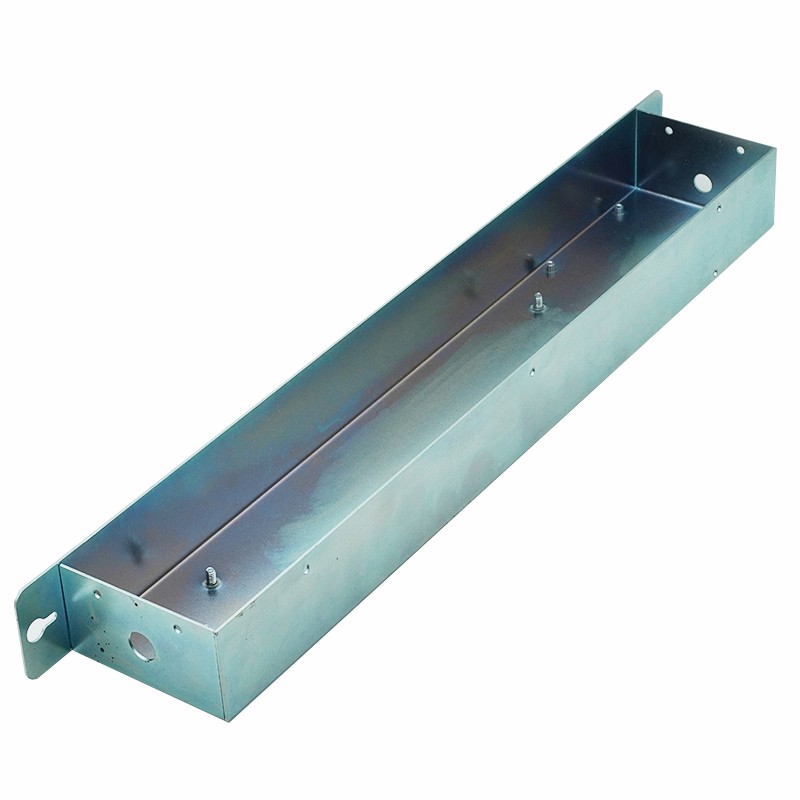

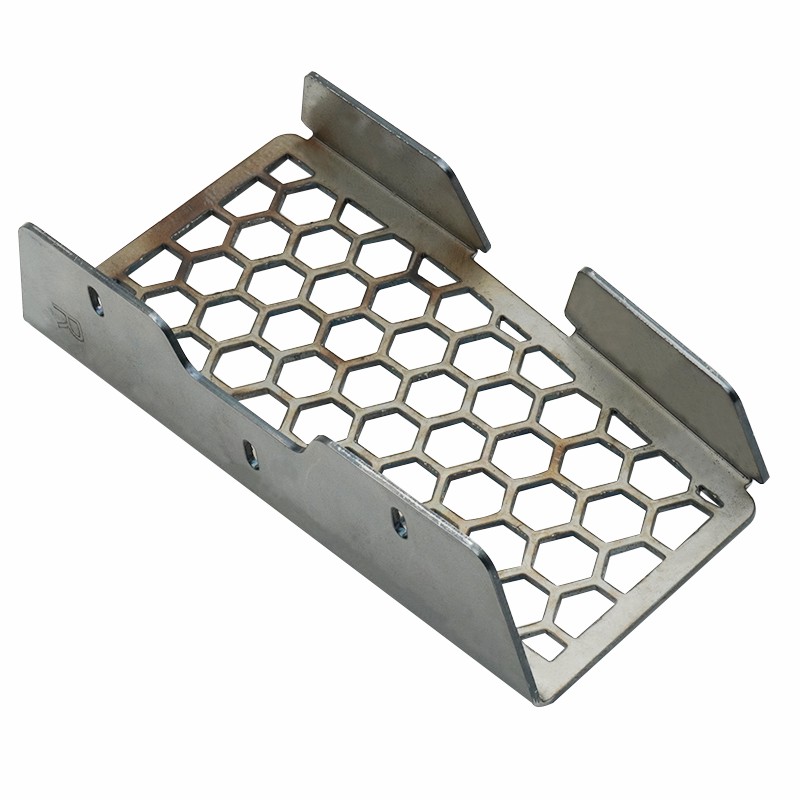

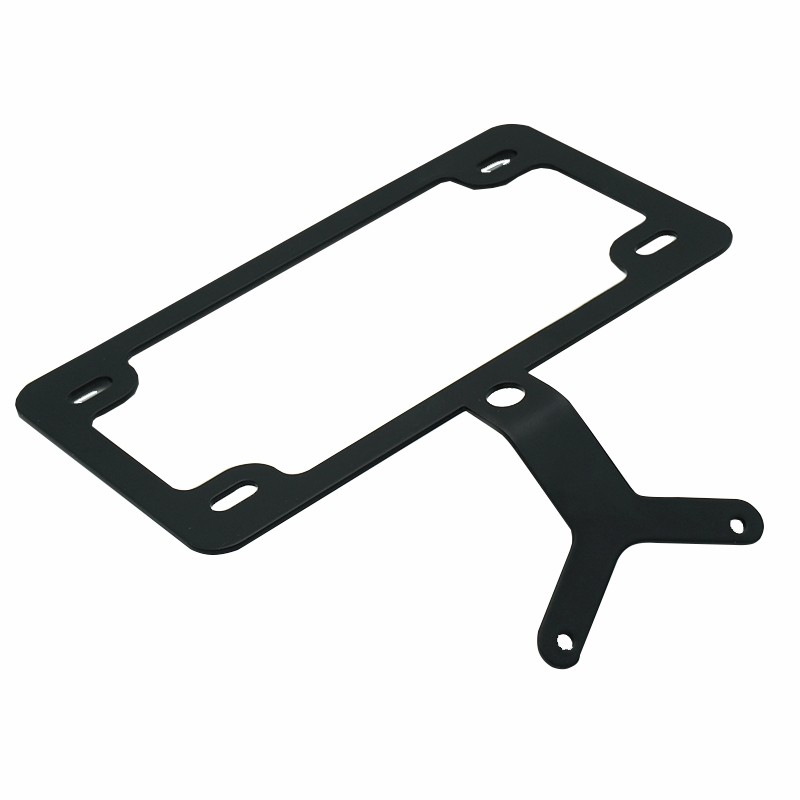

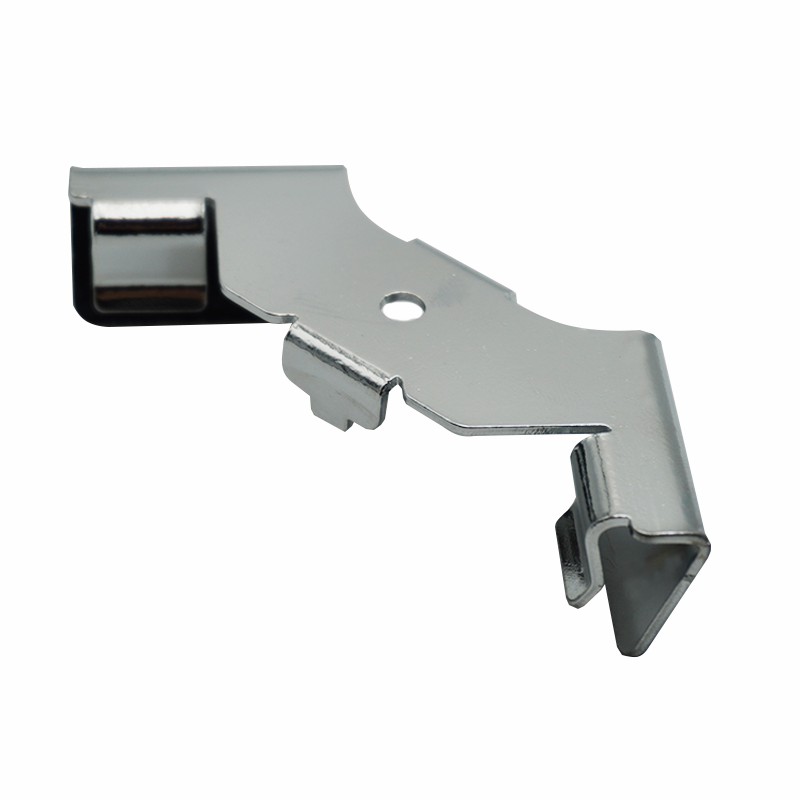

Customized Metal Frames
Customized Metal Frames
Customized Metal Frames
Customized Metal Frames
Customized Metal Frames
Customized Metal Frames
Customized Metal Frames
Customized Metal Frames
Customized Metal Frames
Are you ready to start your new project?

With diverse capabilities and rich manufacturing experience of 26 years, you can trust Weizhi. It will become an indispensable part of your supply chain.

IAI logo
Epson logo
A&D logo
Bombardier logo
Bosch logo
Alstom logo
MAN logo
ABB logo

Classic Case

Structural Installation Framework

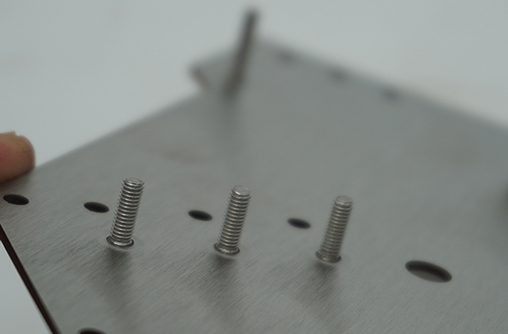

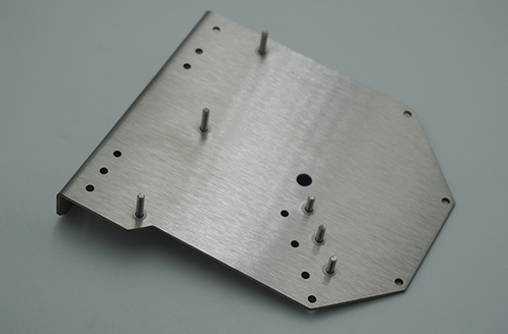

The customer requests that the equipment in the cleanroom be equipped with 304 stainless steel brackets. These brackets should be non-magnetic and corrosion-resistant, and the screw columns should be welded at specific positions to simplify the final assembly process.



Our proposed plan

  • It is made of 304 stainless steel, meeting strict non-magnetic and high-corrosion-resistance requirements.
  • The formation and connection of the support body and the screw column can be completed in one step by combining laser cutting and precise bending.
  • It is treated with sandblasting, preserving the stainless steel's original color while imparting a delicate texture, making it easy to clean and maintain.



The achievements obtained:



The supporting structure is sturdy, and the surface is of high-end texture. Precise positioning and hole openings have enhanced the efficiency of subsequent assembly for customers. It fully meets the customer's usage standards.
