Metal Fabrication Bending

Outsourcing not only increases communication costs but may also cause surface scratches and angle deviations in parts due to logistics turnover and equipment differences, and even delay the entire project cycle.



We insist on completing all the bending processes in our own workshop - from the drawing to the finished product, without having to transfer to other factories or wait for the scheduling of outsourcing.

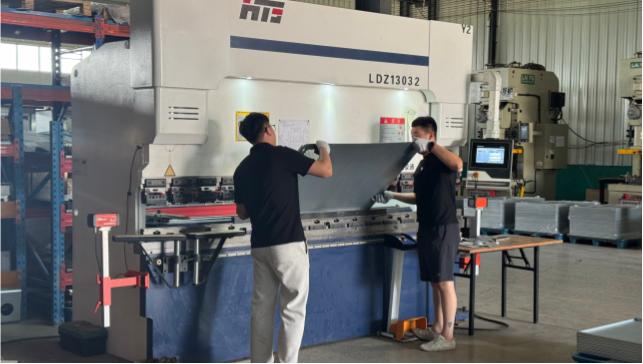

Press brake bending with repeatable angles

Bending turns a flat cut blank into a three-dimensional part, and the hard part is not the first bend — it is the thousandth part having the same angle as the first. CNC back gauges are what keep that repeatable.

What we can produce

Any angle your drawing calls for; most parts use 90°, 45° or a custom angle. Our press brakes handle a range of thicknesses, with the practical limit depending on material and part length. On formed and bent features we typically hold ±0.5 mm on critical dimensions.

Design points worth checking early

All four are raised during free drawing review, before production rather than after.

How bending fits with our other processes

Blanks come from our own laser cutting or stamping lines, and parts move on to welding, machining and finishing in the same factory. Forming, welding and finishing in one place means the appearance and geometry approved on the sample carry through to the batch.

Next step

Send the drawing with material, thickness and quantity. See custom metal bending for sheet metal fabrication, or sheet metal enclosure: design, materials and fabrication if you are designing a box rather than a bracket.



CNC Bending & Forming Technical Specifications✓ In-House Verified
Bending Equipment
CNC Multi-Axis Electro-Hydraulic Press Brakes (320T)
Max Bending Length
Up to 3,200 mm Single Bending Length
Bending Tolerances
±0.2 mm (Linear Dimension) / ±0.5° (Angle)
Minimum Bend Radius
R = 0.5t – 1.0t (Adapted to material grade)
Applicable Materials
Carbon steel (0.5–12mm), Stainless (0.5–8mm), AL (0.5–6mm)
Tooling Versatility
Segmented tooling, acute tooling (30°/45°), gooseneck
Prototype & DFM
Free DFM bend sequence check, rapid sample without hard tooling
Quality Verification
100% CMM angle inspection, surface scratch-free protection

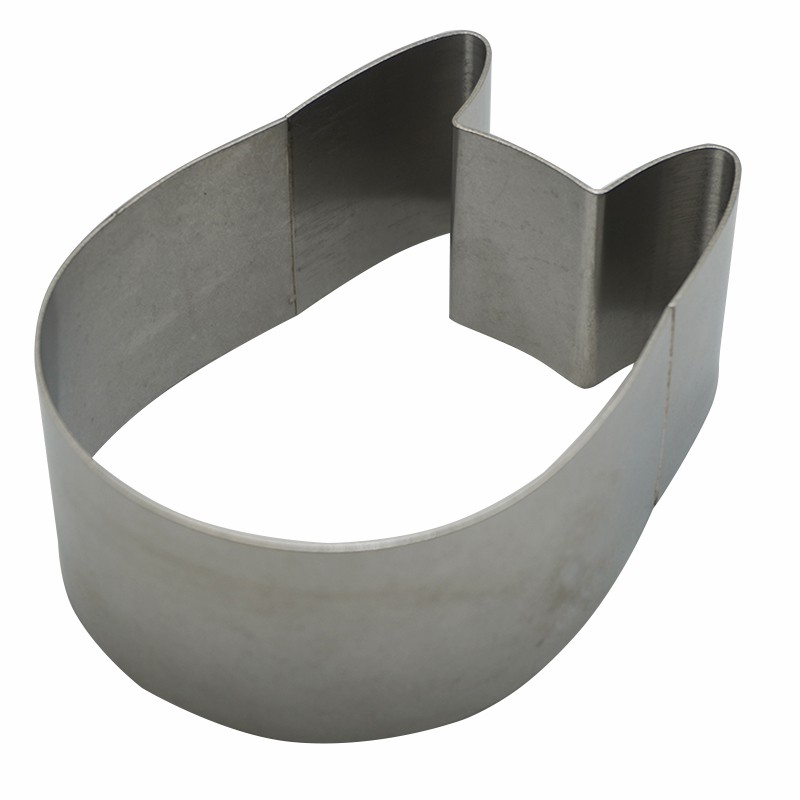

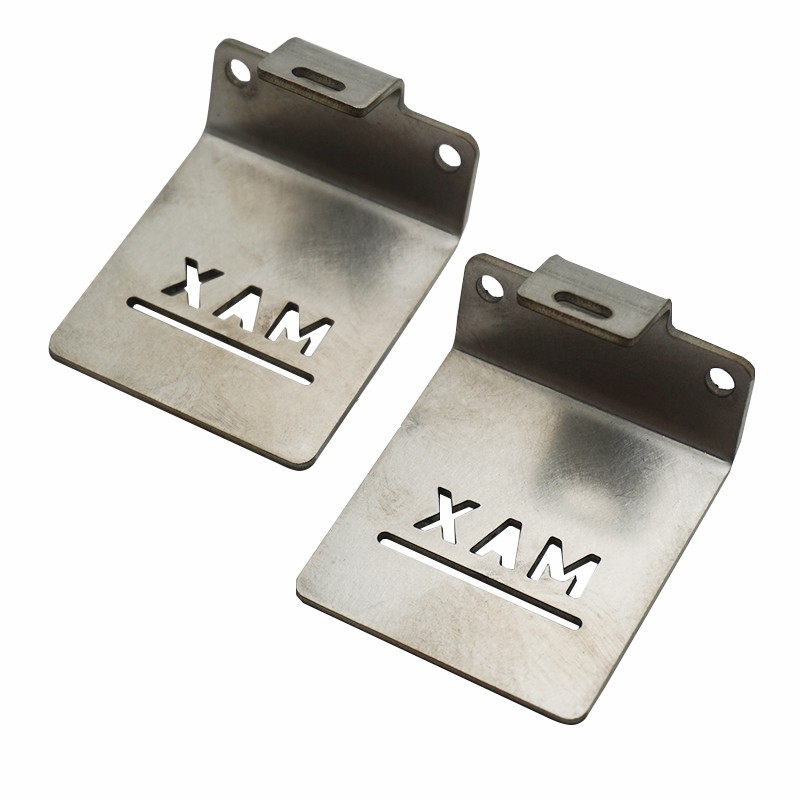

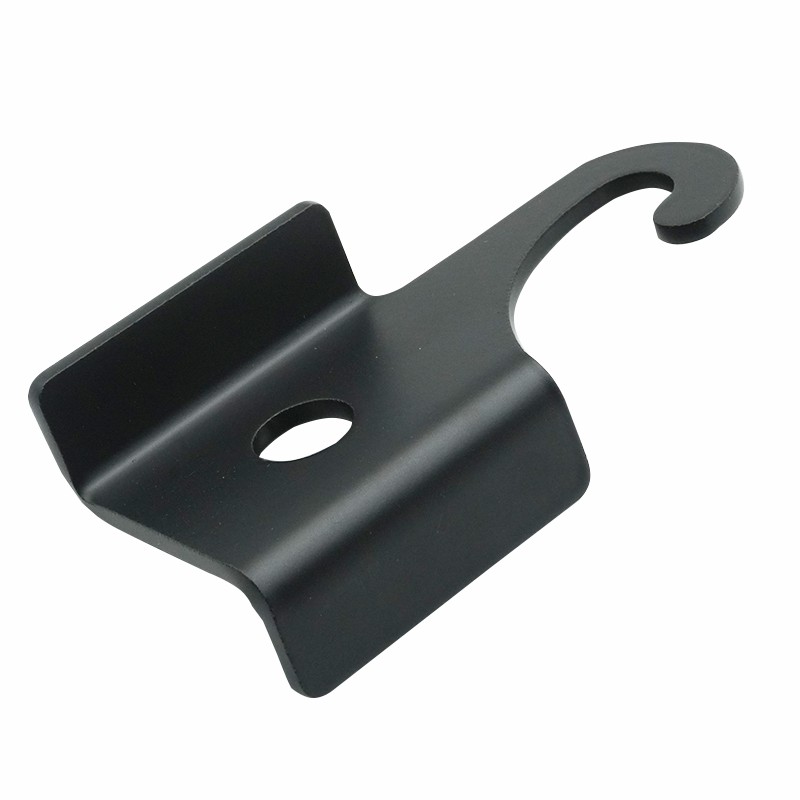

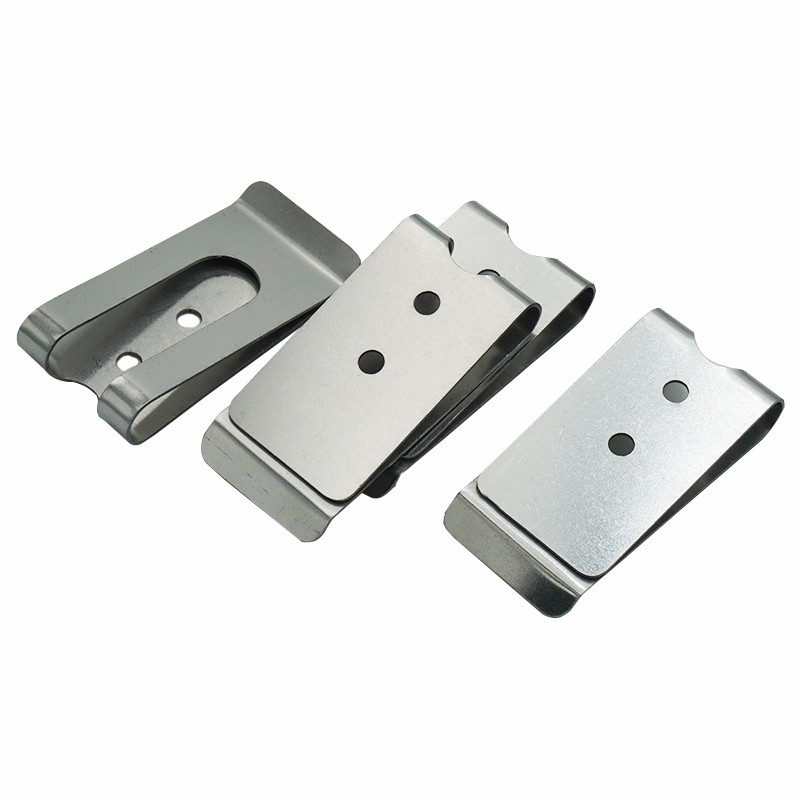

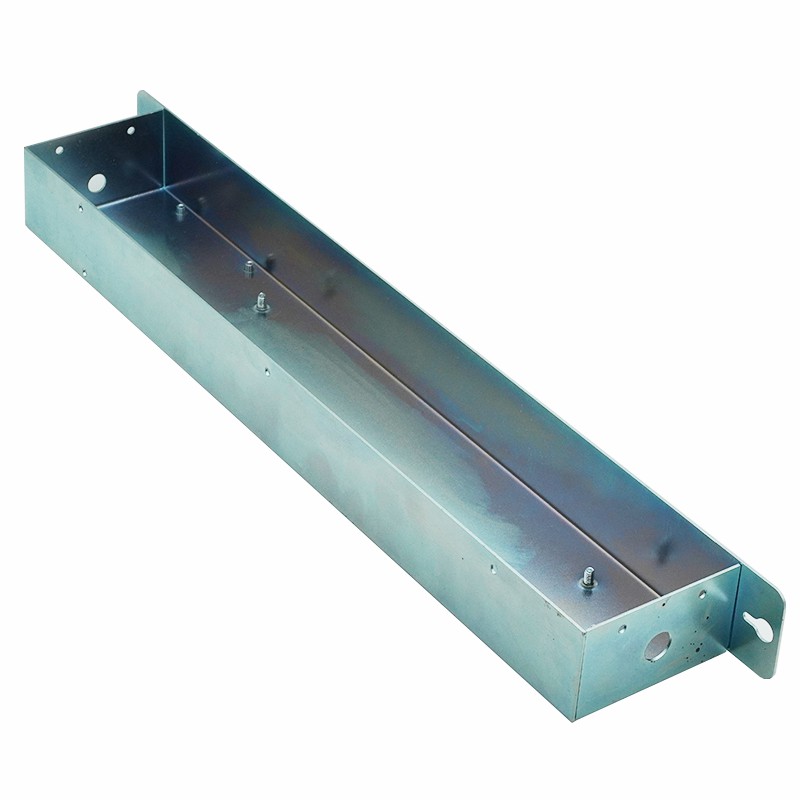

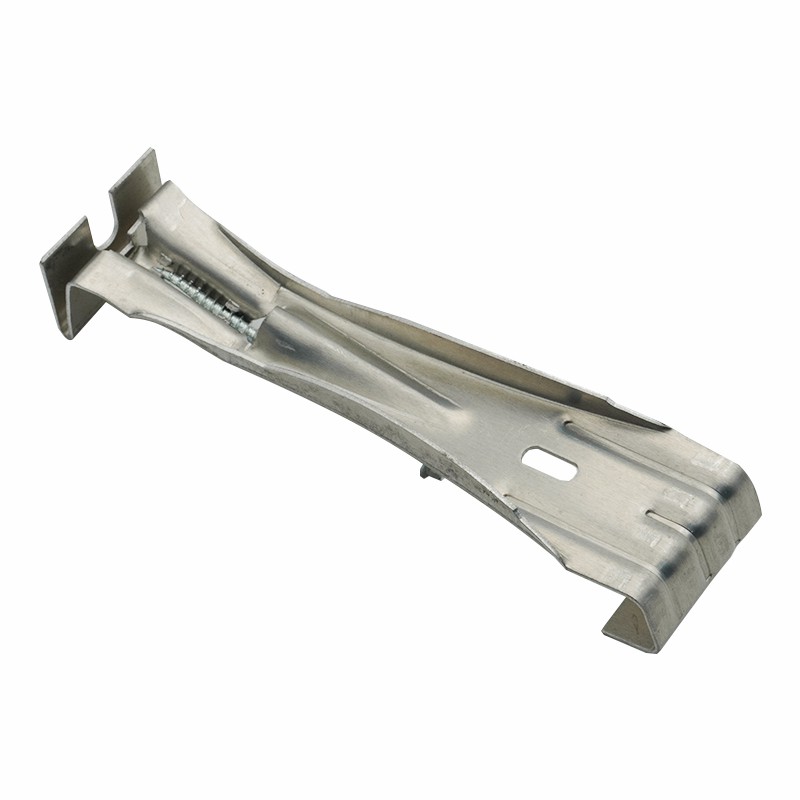

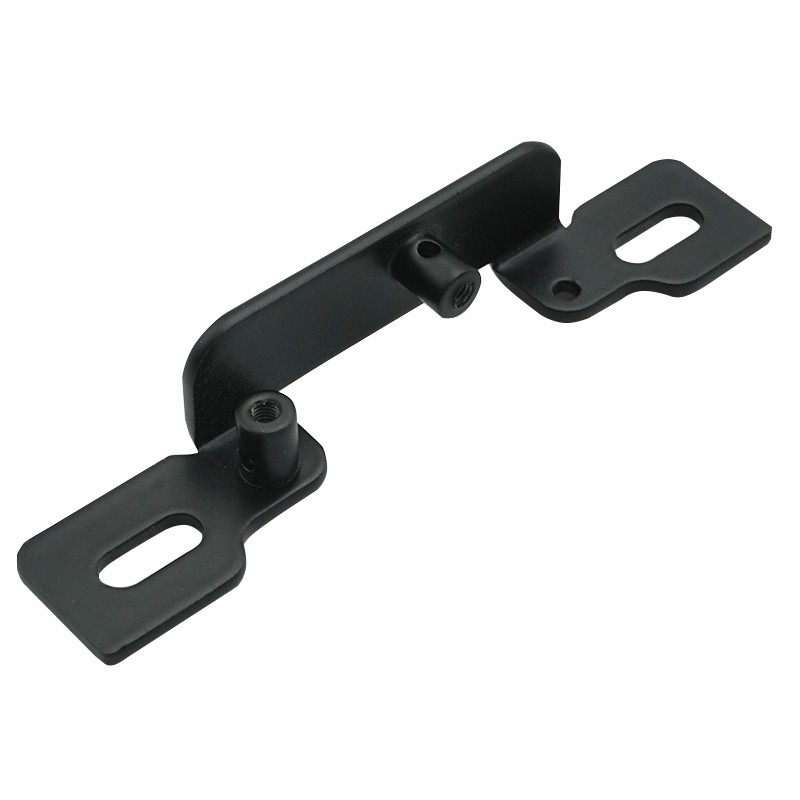

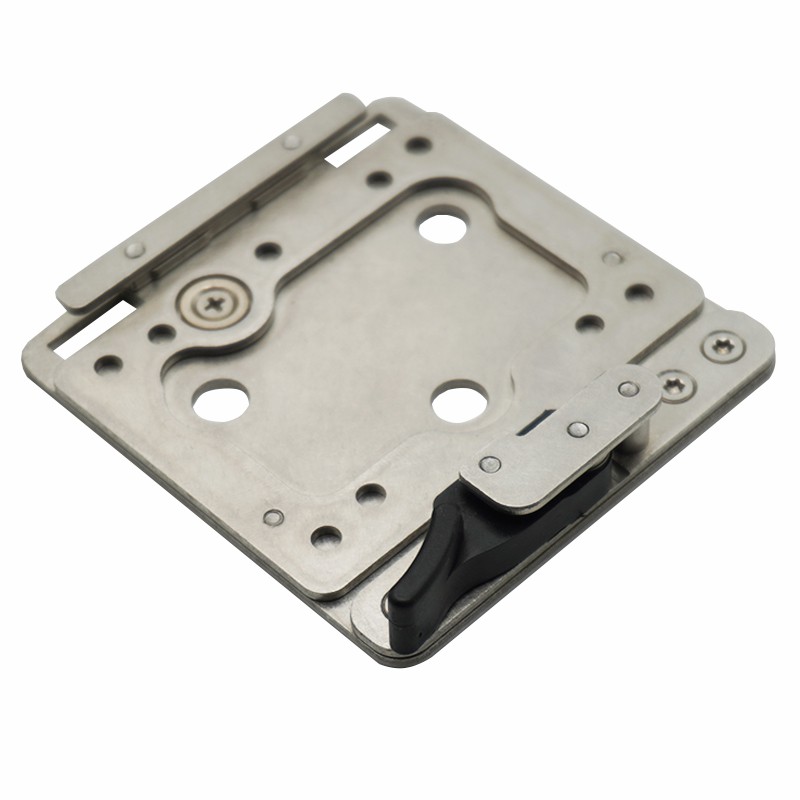

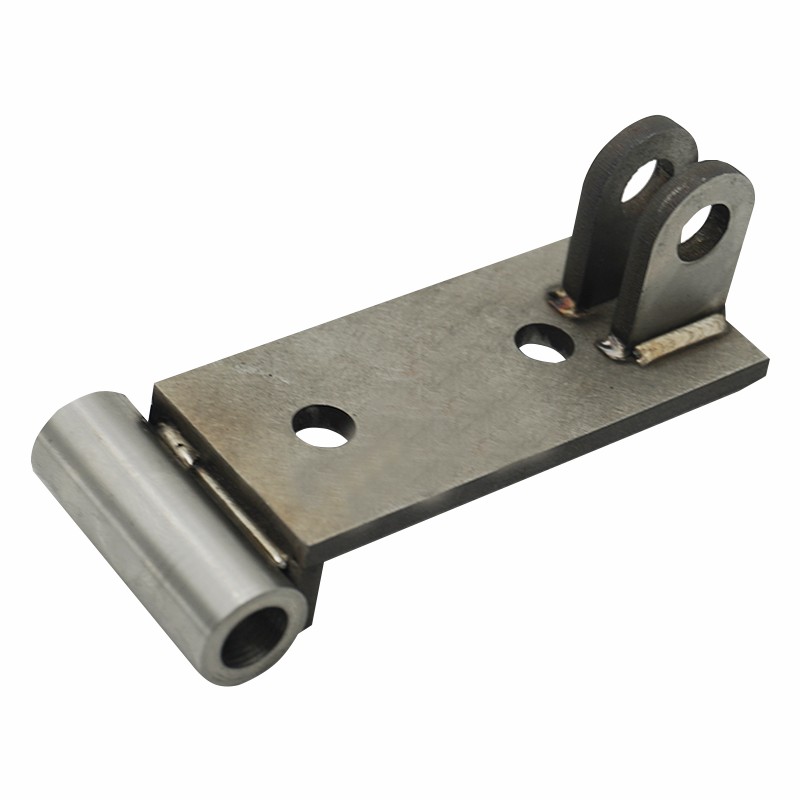

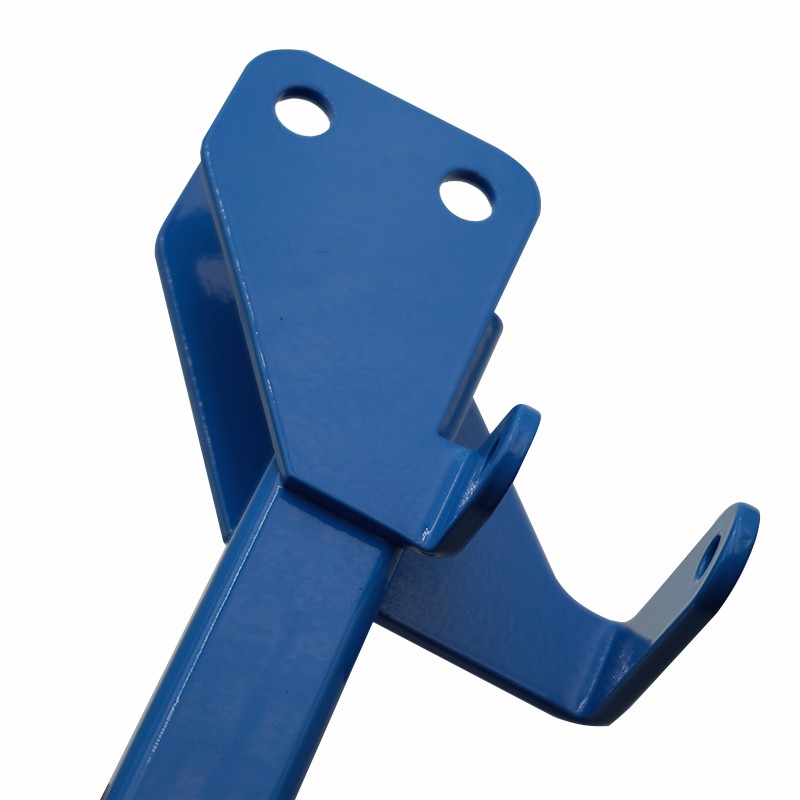

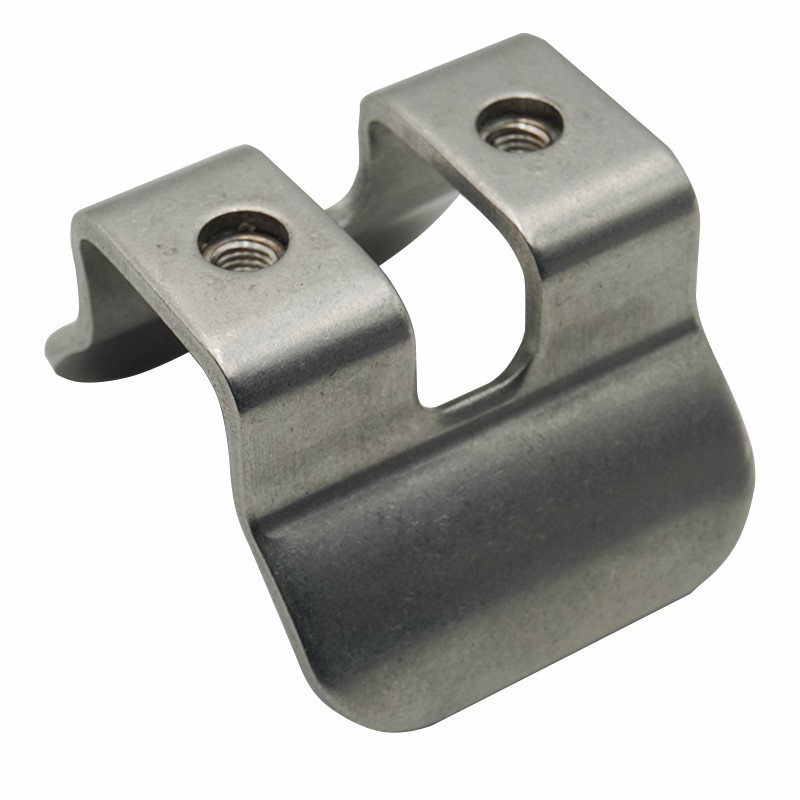

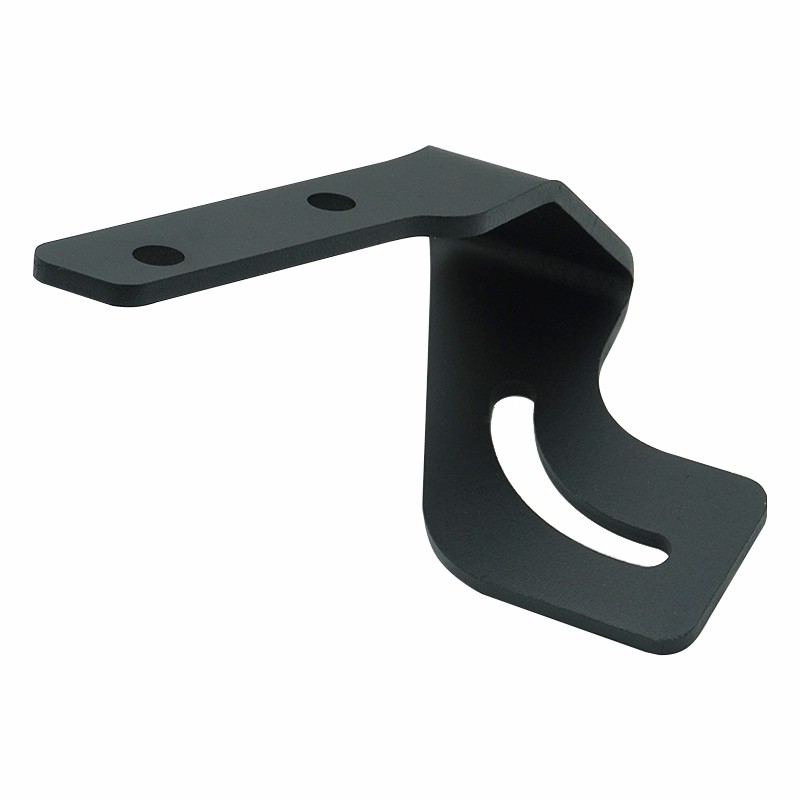

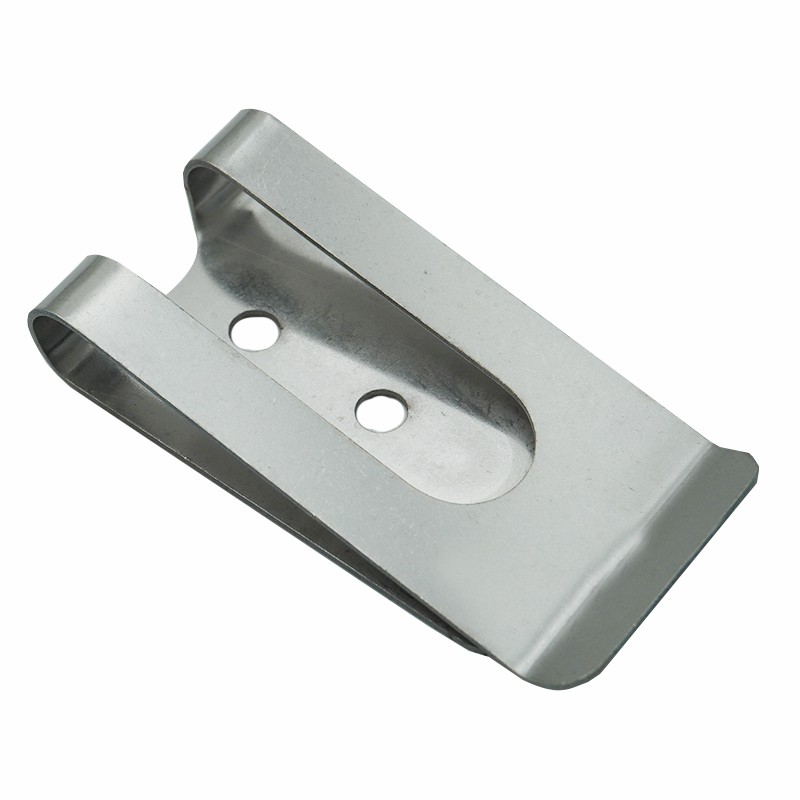

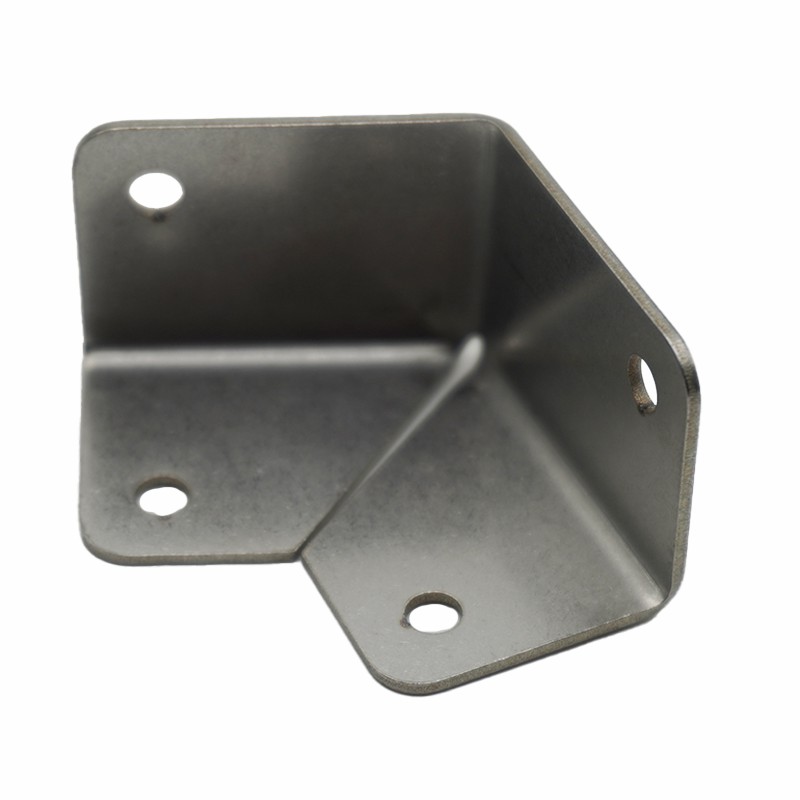

The following are some parts from the 70,000+ different parts we have produced, which demonstrate our control ability over the bending of materials such as carbon steel, stainless steel, and aluminum plates - from simple V-shaped bending to multi-step complex forming, with tolerances and appearance meeting strict requirements.

Metal Fabrication Bending
Metal Fabrication Bending
Metal Fabrication Bending
Metal Fabrication Bending
Metal Fabrication Bending
Metal Fabrication Bending
Metal Fabrication Bending
Metal Fabrication Bending
Metal Fabrication Bending
Metal Fabrication Bending
Metal Fabrication Bending
Metal Fabrication Bending
Metal Fabrication Bending
Metal Fabrication Bending
