Metal Fabrication Stamping / Deep Stamping

We have 40 sets of 80-400 t stamping equipment and 2 dedicated hydraulic presses, covering the entire range of stamping processes, from thin-plate precision stamping to deep-drawing forming.



We can not only efficiently produce small electronic components but also handle deep-stamping parts with high drawing ratios, such as car fuel tanks and shells.



All the equipment can be quickly re-molded and supports various materials, including stainless steel, aluminum, and copper. It can complete multiple processes in a single processing step.

Stamping and deep drawing, from shallow forming to deep drawn shells

We run 40 presses from 80 to 400 tonnes, which covers the full range from thin-gauge shallow forming to thick-plate deep drawing. The presses are the reason a project can move from a shallow bracket to a deep, seamless housing without changing supplier.

Stamping

Blanking, piercing and forming under a press, for parts that need to be produced in volume with consistent dimensions. Simple dies typically take two to three weeks; progressive and compound dies need four to six weeks. Tooling is built in our own die shop, so when you do commit to tooling it stays under one roof, and dies are stored and maintained for your repeat orders.

Deep stamping / deep drawing

Deep drawing pulls sheet metal into a hollow three-dimensional shape — cups, shells, housings, enclosures. Deep-drawn parts are seamless, which matters wherever a welded seam would be a weak point or a leak path. Maximum draw size depends on material, thickness and die structure, so we confirm the feasible size at drawing review.

How to decide between the two

Stamping forms shallow shapes from flat sheet; deep drawing pulls material into a deeper hollow form. If your part is a cup, a shell or a housing, deep drawing is usually the correct route; if it is a flat or lightly formed part, stamping is faster and cheaper. We will compare both honestly rather than default to the process we prefer.

Cost drivers and volume

Tooling cost spreads across quantity, so unit price drops as volume rises — but there is no fixed minimum order quantity. Prototypes and small batches are welcome on the same lines as volume work.

Read more

Custom metal stamping parts for high-volume production and custom deep drawn parts for seamless metal components set out the capabilities in detail.



We have successfully delivered tens of thousands of high-precision and deep-stamping parts for multiple industries, including automobiles, home appliances, energy storage, and agricultural machinery.

Stamping & Deep Drawing Technical Specifications✓ In-House Verified
Press Capacity
40 Sets of 80T – 400T Power Presses & 2 Hydraulic Presses
Deep Drawing Ratio
Max Draw Ratio (h/d) up to 2.2 (Seamless Shells)
Material Thickness
0.5 mm – 10 mm (Steel, 304/316, Brass, Aluminum)
Stamping Tolerances
±0.02 mm (Blanking) / ±0.05 mm (Forming)
Tooling Shop
In-house Die Shop (Progressive, Stage & Compound)
Tooling Lead Time
Simple dies 2–3 weeks, Progressive dies 4–6 weeks
Monthly Capacity
High-volume production up to 500,000+ pcs/month
Quality Documents
First Article Inspection (FAI), EN 10204 3.1, PPAP

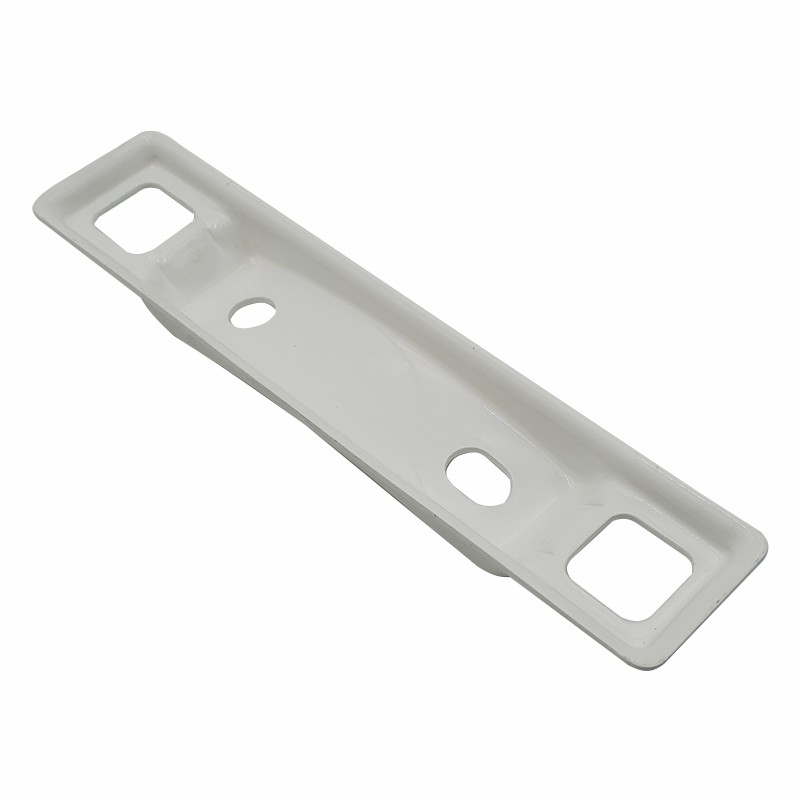

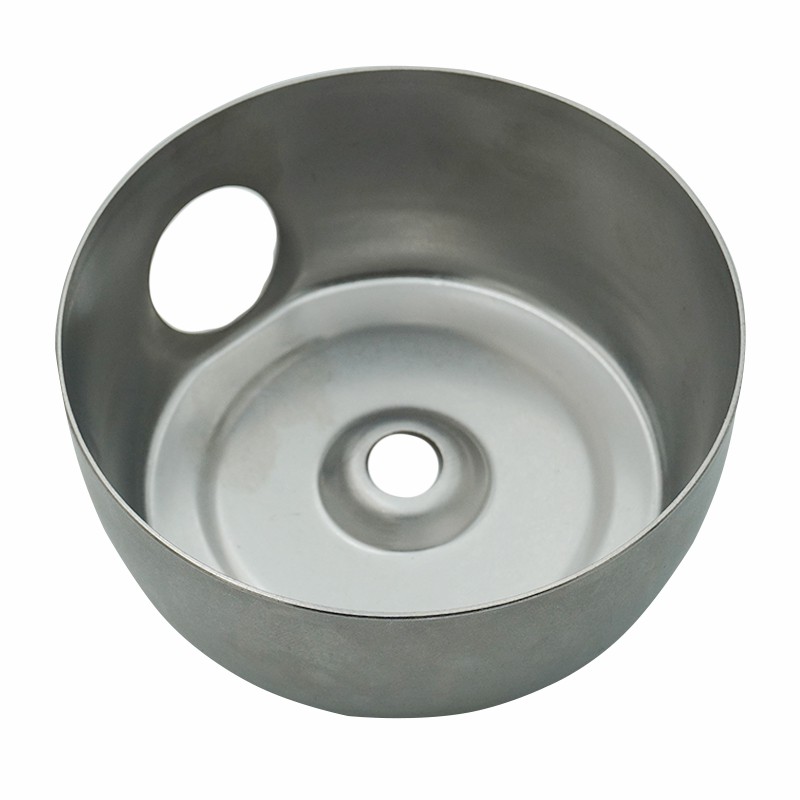

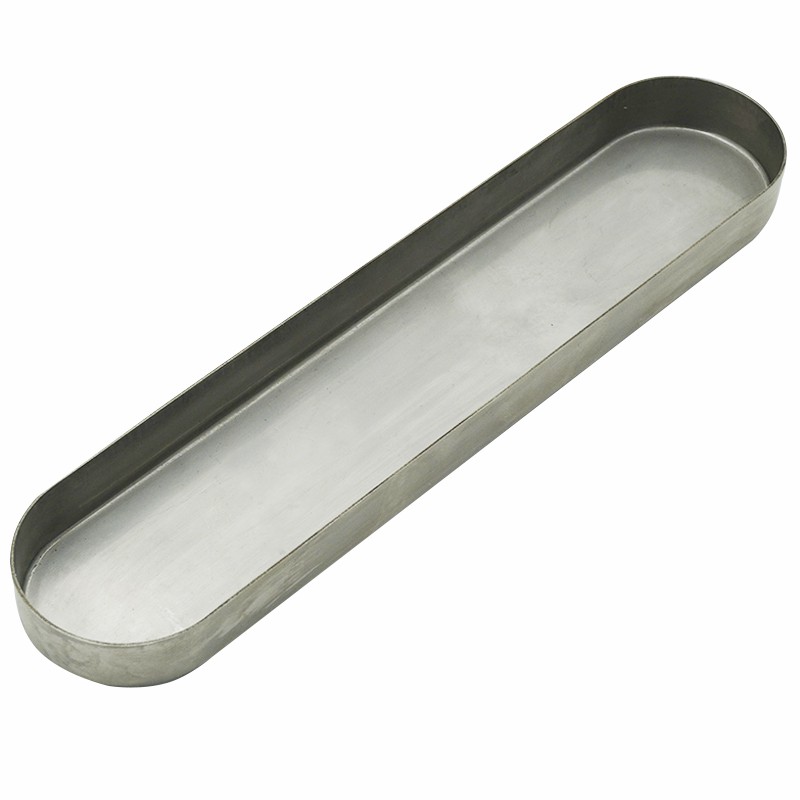

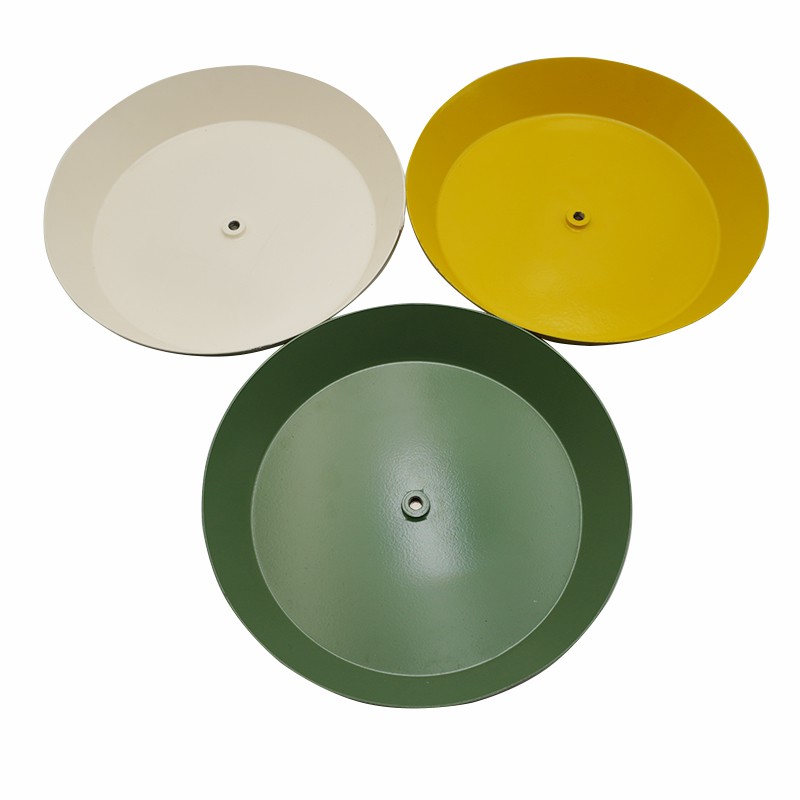

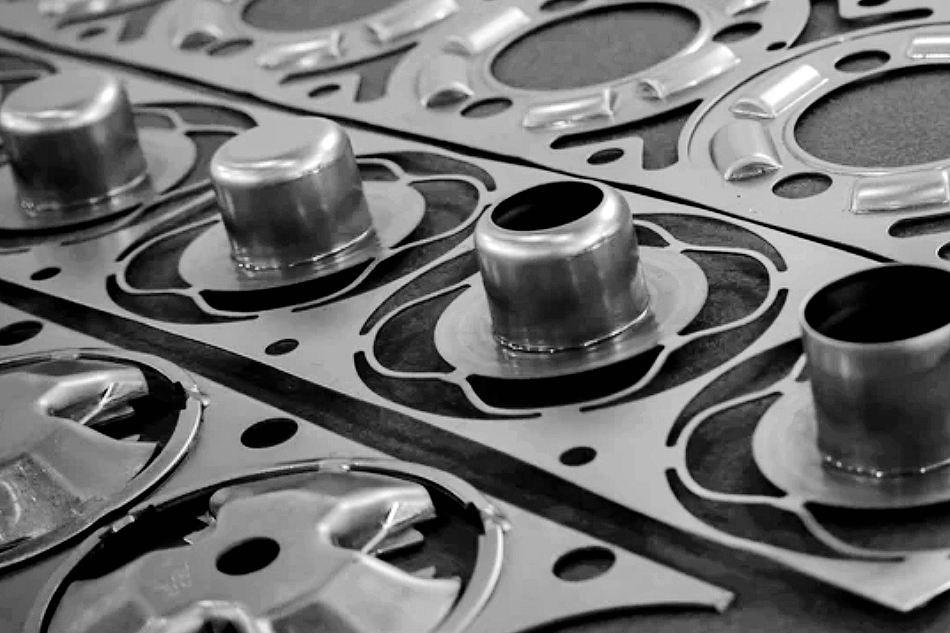

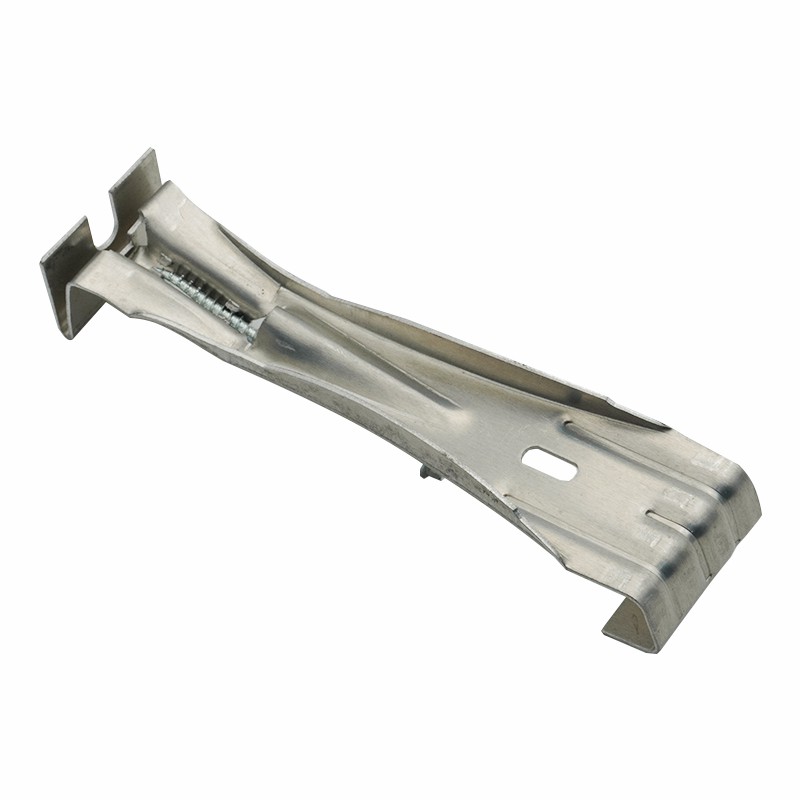

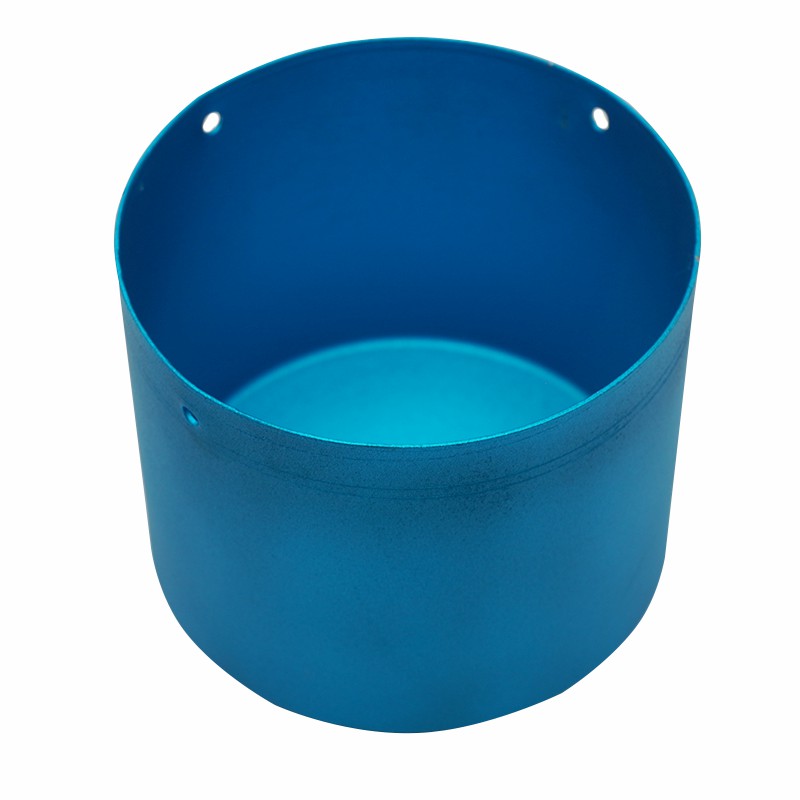

Here are some of the typical parts we have completed:

Metal Fabrication Stamping / Deep Stamping
Metal Fabrication Stamping / Deep Stamping
Metal Fabrication Stamping / Deep Stamping
Metal Fabrication Stamping / Deep Stamping
Metal Fabrication Stamping / Deep Stamping
Metal Fabrication Stamping / Deep Stamping
Metal Fabrication Stamping / Deep Stamping
Metal Fabrication Stamping / Deep Stamping
Metal Fabrication Stamping / Deep Stamping
Metal Fabrication Stamping / Deep Stamping

IAI logo
Epson logo
A&D logo
Bombardier logo
Bosch logo
Alstom logo
MAN logo
ABB logo

What did the customer say?

customer

A company that makes you feel happy

Rapid build testing passed on every revision. Surface finish, functional performance and appearance all met the drawing, and the delivery date held as agreed. In-service performance stays consistent.

Daniel

Daniel

Weizhi is amazing!

Several manufacturing processes are available from a single supplier. Parts met spec, packing arrived intact, lead times were short and pricing was fair.

Mary

Mary

Are you ready to start your new project?

With diverse capabilities and rich manufacturing experience of 26 years, you can trust Weizhi. It will become an indispensable part of your supply chain.
